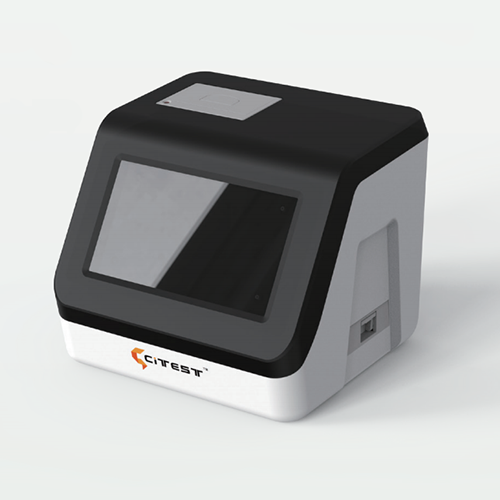

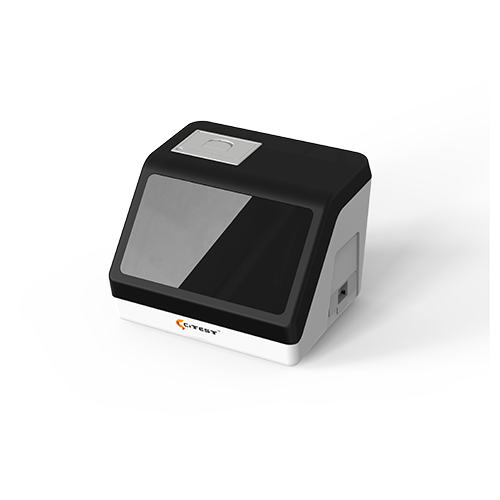

Lateral Flow (LF) Reader

Lateral Flow (LF) Reader Plus is designed to provide digital test results for Rapid Tests units based on Lateral Flow Immunoassay. The reader can be used for qualitative, semi-quantitative and quantitative analysis. Lateral Flow (LF) Reader Plus uses a high-resolution camera to capture images of the test strip reflected on the object being tested, and the software algorithms automatically determine the test results and display them on the touch screen. The test results can be printed using the built-in thermal printer and the reader has the advantages of high precision and high speed.


Technical Specifications


Test Format:

Touch Screen:


Read Time:

Power Source:

Dimensions (L*W*H):


Data Storage:

Connecting Ports:

Printer :

Optical Imaging and Image Processing


7 Inches

Qualitative, Semi-quantitative, Quantitative

5 Seconds

DC 12V, 2A

221 * 215 *165 mm

< 1.5 kg

Up to 3,000 Records

LAN Port, 4 USB Ports,WIFI

Built-in thermal printer




Easy Operation

Portable Design

Multiple Test Items

LIS Compatibility


Product features Parameters
PrincipleOptical Imaging and Image Processing
Reading Time5 seconds
Pack1 Unit
Shelf Life5 Years

Ordering Information

Cat. No. Product Specimen Pack
VTR-CT-200 Lateral Flow (LF) Reader 1 Unit
